The Unrivaled Performance of Titanium Woven Mesh

In demanding industrial environments, material selection is paramount. For applications requiring exceptional durability and performance, Titanium Woven Wire Mesh stands out. This premium mesh is meticulously woven from industrial pure titanium (Grade 1/Grade 2) or high-performance titanium alloy wire (such as Grade 5, Ti-6Al-4V). Its inherent properties deliver a compelling suite of advantages, including strong corrosion resistance, lightweight and high strength, impressive high-temperature resistance, and non-magnetic characteristics. These attributes make Titanium Woven Wire Mesh indispensable across diverse sectors, from marine engineering and chemical filtration to aerospace, medical equipment, and the electrolysis industry.



Manufacturing Excellence: Crafting Superior Woven Titanium Mesh

Detailed Process Flow

The production of high-quality woven titanium mesh involves stringent controls and advanced manufacturing techniques to ensure its integrity and performance.

1. Material Selection & Sourcing: Industrial pure titanium wire (Grade 1/Grade 2) or specific titanium alloy wire (e.g., Grade 5 Ti-6Al-4V) is meticulously sourced from certified suppliers. Materials are chosen based on the application's required corrosion resistance, strength, and temperature tolerance.

2. Wire Preparation: The titanium wire undergoes cleaning and annealing processes to ensure optimal ductility and uniformity, critical for stable weaving. Wire diameters are precisely controlled, typically ranging from 0.05mm to 1.8mm.

3. Precision Weaving: Utilizing specialized weaving looms, the titanium wire is woven into various patterns, including plain weave, twilled weave, or Dutch weave, depending on the filtration efficiency and mechanical strength required. This method ensures consistent aperture size and uniform mesh structure.

4. Edge Treatment: Post-weaving, the mesh edges are treated to prevent fraying and ensure structural stability. Common methods include welding, crimping, or resin bonding.

5. Cleaning & Surface Treatment: The mesh is thoroughly cleaned to remove any residual lubricants or contaminants from the weaving process. Passivation or other surface treatments may be applied to enhance corrosion resistance, particularly for medical or highly reactive chemical applications.

6. Quality Control & Testing: Each batch of Titanium Woven Wire Mesh undergoes rigorous testing.

· Material Composition Verification: Spectrographic analysis confirms the correct titanium grade.

· Dimensional Accuracy: Mesh count, wire diameter, and aperture size are checked against specifications using optical comparators and precise measuring tools (e.g., ASTM E2814, ISO 9044).

· Mechanical Properties: Tensile strength and elongation are tested to ensure the mesh can withstand operational stresses (e.g., ASTM E8, ISO 6892).

· Corrosion Resistance: Samples may undergo salt spray tests or exposure to specific corrosive media relevant to the application (e.g., ASTM B117).

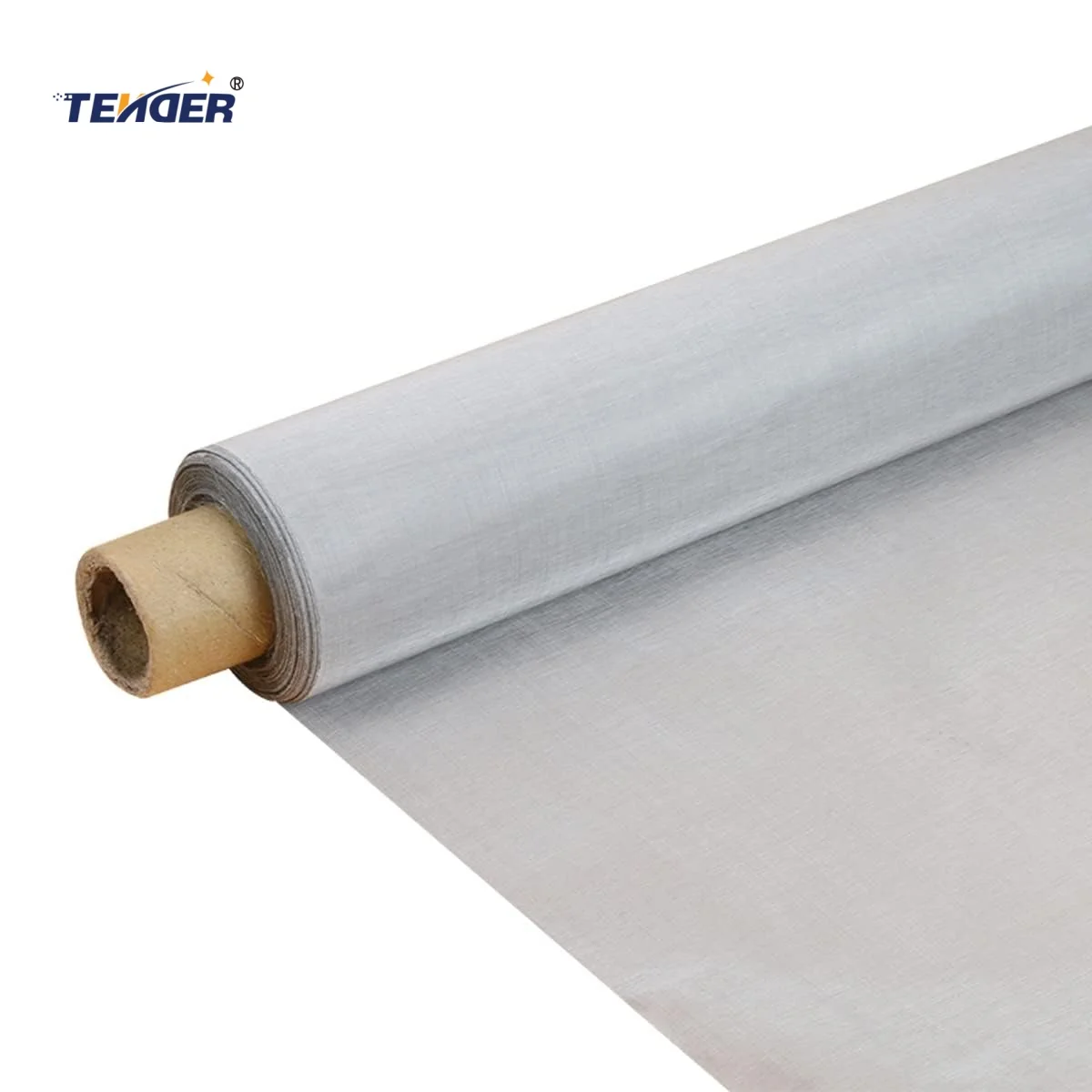

7. Packaging & Dispatch: The finished Titanium Woven Wire Mesh is carefully packaged to prevent damage during transit, often rolled onto cores and protected by sturdy outer layers.

Service Life & Applicable Industries

The service life of woven titanium mesh is exceptionally long, often exceeding decades in appropriate conditions, due to its inherent resistance to degradation. This makes it a cost-effective solution despite higher initial investment.

Key applicable industries include:

· Chemical Processing: Filtration, catalyst support, and separation in highly corrosive acids (e.g., nitric acid, hydrochloric acid at elevated temperatures) and chlorides.

· Marine & Offshore: Seawater filtration, ballast water treatment, desalination, and anti-fouling systems due to its excellent resistance to saltwater corrosion.

· Aerospace: Lightweight structural components, EMI/RFI shielding, and filtration in high-temperature or critical fluid systems.

· Medical & Biomedical: Implants, surgical filters, and prosthetic components due to its biocompatibility and non-toxic nature.

· Electrolysis & Electrochemistry: Anode baskets, cathode materials, and separators in chlorine-alkali production, electroplating, and wastewater treatment.

· Energy & Nuclear: Components in reactors, heat exchangers, and waste processing where high temperature and corrosion resistance are critical.

Technical Specifications & Performance Data

Key Technical Terminology

· Mesh Count: The number of openings per linear inch, determining filtration fineness.

· Wire Diameter: The thickness of individual titanium wires, impacting strength and open area.

· Aperture Size (Micron Rating): The clear opening between adjacent wires, directly related to filtration efficiency.

· Open Area: The ratio of the area of the openings to the total area of the mesh, affecting flow rate.

· Plain Weave: Wires interlace alternately over and under each other, creating square apertures (common for general filtration).

· Twilled Weave: Wires pass over two and under two adjacent wires, allowing for larger wire diameters and finer mesh counts (stronger, finer filtration).

· Dutch Weave: Densely packed warp wires and larger shute wires create a tortuous path for fine filtration at high flow rates.

Product Specification Table: Common Titanium Woven Wire Mesh Parameters

Mesh Count (per inch)	Wire Diameter (mm)	Aperture Size (µm)	Open Area (%)	Weave Type	Material Grade
10	0.60	1940	70.2	Plain	Grade 2
20	0.30	970	69.4	Plain	Grade 1
40	0.18	455	59.0	Plain	Grade 2
80	0.10	218	48.0	Plain	Grade 2
150	0.06	109	42.8	Plain	Grade 1
200	0.05	77	37.4	Plain	Grade 2
325	0.035	43	29.4	Plain	Grade 1

Certifications and Authoritative Standards

Our Titanium Woven Wire Mesh products adhere to the highest international quality and manufacturing standards, ensuring reliability and performance.

· ISO 9001:2015 Certified: Demonstrates our commitment to a robust quality management system.

· ASTM B265, B348, B381: Standards for Titanium and Titanium Alloy Plate, Sheet, Strip, Bar, and Forgings, ensuring raw material quality.

· ASTM E2814-11: Standard Specification for Industrial Woven Wire Cloth.

· ISO 9044:2016: Industrial wire screens and woven wire cloth – Technical requirements and testing.

· RoHS and REACH Compliant: Ensuring environmental safety and compliance with chemical regulations.

Applications, Advantages & Customization

Key Advantages of Titanium Woven Wire Mesh

· Superior Corrosion Resistance: Unmatched in highly aggressive chemical environments, including oxidizing acids, chlorides, and seawater.

· High Strength-to-Weight Ratio: Offers excellent structural integrity while remaining lightweight, crucial for aerospace and portable equipment.

· High-Temperature Stability: Maintains mechanical properties at elevated temperatures, suitable for high-heat processes.

· Biocompatibility: Non-toxic and non-allergenic, making it ideal for medical implants and pharmaceutical applications.

· Non-Magnetic: Essential for sensitive electronic equipment, MRI machines, and navigation systems.

· Longevity & Durability: Reduced maintenance and replacement costs due to its extended service life.

Customization Options

We understand that specific applications demand tailored solutions. Our Titanium Woven Wire Mesh is highly customizable:

· Material Grade: Industrial pure titanium (Grade 1, 2) or titanium alloys (Grade 5 Ti-6Al-4V) based on mechanical and chemical requirements.

· Mesh Count & Wire Diameter: Precisely woven to achieve desired filtration efficiency and strength.

· Weave Pattern: Plain, Twilled, or Dutch weave for specific flow rates and particle retention.

· Dimensions: Available in rolls, sheets, or cut-to-size pieces. Maximum width up to 1500mm.

· Fabrication Services: Further processing into custom filters, baskets, discs, or other components via welding, stamping, or forming.

· Surface Treatments: Passivation for enhanced corrosion resistance, or specialized coatings for unique applications.

Real-World Case Studies

Case Study 1: Seawater Desalination Plant

A major Middle Eastern desalination plant required robust filtration media for their reverse osmosis pre-treatment stage, capable of withstanding aggressive seawater chemistry and biofouling. Our custom 50-mesh woven titanium mesh (Grade 2) filters were installed. After 3 years, they showed negligible corrosion and maintained optimal flow rates, significantly reducing replacement frequency and operational costs compared to previous stainless steel filters.

Case Study 2: Chemical Reactor Catalyst Support

An advanced chemical manufacturer needed a catalyst support grid for a reactor operating with hot hydrochloric acid vapors. Previous nickel alloy meshes failed within months. We provided a custom-fabricated 10-mesh titanium woven mesh (Grade 1) with specific edge welding. It has now been in continuous service for over 5 years, demonstrating superior chemical inertness and mechanical stability, ensuring consistent reaction efficiency.

Customer Feedback & Trust

"The Titanium Woven Wire Mesh supplied for our medical device filtration system exceeded our expectations. The material quality and precision weaving were impeccable, crucial for our sterile environment. Their technical support during customization was invaluable."

— Dr. A. Sharma, R&D Director, MedTech Innovations

"Our chemical processing facility demands materials that can withstand extreme conditions. The woven titanium mesh filters have proven to be exceptionally resilient, drastically reducing our downtime for filter replacement. A truly reliable product."

— Eng. J. Lee, Procurement Manager, PetroChem Solutions

Vendor Comparison: Why Partner With Us

Choosing the right supplier for high-performance materials like woven titanium mesh is critical. Here's how we compare to typical market offerings:

Feature	Our Company	Typical Competitor A	Typical Competitor B
Material Purity & Grades	Certified Grade 1/2 Pure Ti, Grade 5 Alloy; Mill Certificates provided.	Often unspecified, limited grades.	Pure Ti only, no alloy options.
Customization Capability	Extensive: Mesh count, wire dia., weave, size, fabrication (welding, forming).	Limited standard sizes and weaves.	Basic cut-to-size options only.
Quality Certifications	ISO 9001, ASTM, ISO 9044, RoHS, REACH.	Basic ISO 9001 (sometimes expired).	Limited or no public certifications.
Technical Support	Dedicated engineering team, application consultation.	Basic product data sheets.	Sales-focused support.
Delivery Lead Time	Fast, reliable, and transparent with global logistics.	Often delayed, vague timelines.	Long lead times for custom orders.
After-Sales Service	Comprehensive warranty, troubleshooting, return policy.	Limited support, no clear warranty.	Virtually non-existent.

Frequently Asked Questions (FAQ)

Q: What is the typical delivery time for Titanium Woven Wire Mesh?

A: Standard sizes and common mesh counts are typically in stock and can be dispatched within 3-5 business days. Custom orders or larger quantities generally require 2-4 weeks, depending on complexity and current production schedules. We provide clear lead times upon quotation.

Q: Do you offer samples for testing?

A: Yes, we understand the importance of material validation. We can provide small samples of standard Titanium Woven Wire Mesh for your evaluation. For custom specifications, sample production may incur a nominal fee.

Q: What is your warranty policy?

A: Our Titanium Woven Wire Mesh products come with a 12-month warranty against manufacturing defects from the date of purchase. This warranty covers material quality and weaving integrity under normal operating conditions. Full details are available in our terms and conditions.

Q: What kind of after-sales support do you provide?

A: We offer comprehensive after-sales support, including technical assistance for installation and troubleshooting, guidance on cleaning and maintenance, and prompt handling of any warranty claims or quality concerns. Our goal is to ensure long-term satisfaction and performance.

Authoritative Sources & Further Reading

1. ASTM International. (n.d.). ASTM B265 / B265M-23, Standard Specification for Titanium and Titanium Alloy Strip, Sheet, and Plate. Retrieved from astm.org

2. International Organization for Standardization. (2016). ISO 9044:2016, Industrial wire screens and woven wire cloth — Technical requirements and testing. Retrieved from iso.org

3. Encyclopædia Britannica. (n.d.). Titanium. Retrieved from britannica.com

4. ASM Handbook, Vol 13A: Corrosion: Fundamentals, Testing, and Protection. (2003). Titanium Alloys in Corrosive Environments.
